Digimatic Calipers


MyCal Lite Series 700 for DIY

  • The “MyCAL-Lite” is an ideal measuring tool for DIY (Do-It-Yourself) use.

  • The LCD screen allows error-free readout of measurements.

  • With depth measuring bar.

Part Number
Range in/mm
LCD Resolution
Accuracy
SPC Output
Remarks:
Sale Price

700-123-10
0-8"/0-200mm
.001"/0.1mm
+/-.005"
No
MyCal Lite w/All Steel Construction, w/Depth Bar

$146.00

Digimatic Calipers with Absolute Encoders Series 500

  • Large and clear LCD readout.

  • The ZERO/ABS key allows the display to be Zero-Set at any slider position along the scale for incremental comparison measurements. This switch will also allow return to the absolute (ABS) coordinate and display of the true position from the origin point (usually jaws-closed point).

  • Data Hold Unit (959143) is optional.

  • Carbide-tipped jaw type calipers are also available.

  • With thumb roller. Except 500-500-10, 500-501-10,500-502-10.

  • Supplied in fitted plastic case. Except 1000mm / 40” supplied in wooden case.

Part Number Range in/mm LCD Resolution Accuracy SPC Output Remarks: Sale Price

500-170-30

 0-4"/0-100mm .0005"/0.01mm
+/-.001"
Yes .075" Round Depth Bar

$154.00

500-195-30

 0-4"/0-100mm .0005"/0.01mm
+/-.001"
No .075" Round Depth Bar

$119.00

500-171-30

 0-6"/0-150mm .0005"/0.01mm
+/-.001"
Yes

$164.00

500-174-30

 0-6"/0-150mm .0005"/0.01mm
+/-.001"
Yes Carbide Tipped Jaws for OD Measurement

$315.00

500-175-30

 0-6"/0-150mm .0005"/0.01mm
+/-.001"
Yes Carbide Tipped Jaws for OD & ID Measurement

$336.00

500-178-30

 0-6"/0-150mm .0005"/0.01mm
+/-.001"
Yes .075" Rod Depth Bar,

$239.00

500-196-30

 0-6"/0-150mm .0005"/0.01mm
+/-.001"
No

$129.00

500-159-30

 0-6"0/150mm .0005"/0.01mm
+/-.001"
No Carbide Tipped Jaws for OD Measurement

$199.00

500-160-30

 0-6"/0-150mm .0005"/0.01mm
+/-.001"
No Carbide Tipped Jaws for OD & ID Measurement

$257.00

500-172-30

 0-8"/0-200mm .0005"/0.01mm
+/-.001"
Yes

$216.00

500-176-30

 0-8"0/200mm .0005"/0.01mm
+/-.001"
Yes Carbide Tipped Jaws for OD Measurement

$349.00

500-177-30

 0-8"/0-200mm .0005"/0.01mm
+/-.001"
Yes Carbide Tipped Jaws for OD & ID Measurement

$369.00

500-197-30

 0-8"/0-200mm .0005"/0.01mm
+/-.001"
No

$185.00

500-163-30

 0-8"/0-200mm .0005"/0.01mm
+/-.001"
No Carbide Tipped Jaws for OD Measurement

$243.00

500-164-30

 0-8"/0-200mm .0005"/0.01mm
+/-.001"
No Carbide Tipped Jaws for OD & ID Measurement

$321.00

500-173-30
0-12"/0-300mm
.0005"/0.01mm
+/-.0015"
Yes


$472.00

500-167-30
0-12"/0-300mm
.0005"/0.01mm
+/-.0015
Yes
Carbide Tipped Jaws for OD Measurement

$584.00

500-168-30
0-12"/0-300mm
.0005"/0.01mm
+/-.0015"
Yes
Carbide Tipped Jaws for OD & ID Measurement

$683.00

500-193-30
0-12"/0-300mm
.0005"/0.01mm
+/-.0015"
No


$371.00

500-165-30
0-12"/0-300mm
.0005"/0.01mm
+/-.0015"
No
Carbide Tipped Jaws for OD Measurement

$496.00

500-166-30
0-12"/0-300mm
.0005"/0.01mm
+/-.0015"
No
Carbide Tipped Jaws for OD & ID Measurement

$613.00

500-505-10
0-18"/0-450mm
.0005"/0.01mm
+/-.002"
Yes
w/o Thumb Roller

$735.00

500-506-10
0-24"/0-600mm
.0005"/0.01mm
+/-.002"
Yes
w/o Thumb Roller

$800.00

500-507-10
0-40"/0-1000mm
.0005"/0.01mm
+/-.003"
Yes
w/o Thumb Roller

$1,556.00

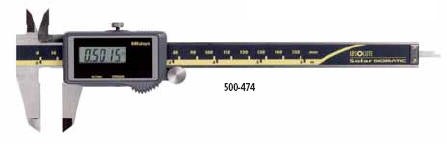

Digimatic Calipers with Absolute Encoder Series 500 - Solar Powered

  • No battery or origin reset needed.

  • No more repeated zero setting caused by the shortage of light intensity.

  • Hard-coated solar panel for safe operation.

  • No fear for overspeed errors.

  • With thumb roller.

  • Supplied in fitted plastic case.

Part Number Range in/mm LCD Resolution Accuracy SPC Output Remarks: Sale Price

500-463

 0-4"/0-100mm 0005"/0.01mm +/-.001" Yes .075" Round Depth Bar

$233.00

500-473

 0-4"/0-100mm 0005"/0.01mm +/-.001" No .075" Round Depth Bar

$148.00


Digimatic Calipers with Absolute Encoder Series 500 - Super Caliper-Solar Powered

  • No battery or origin reset needed.

  • With no annoying origin restoration necessary, a measurement can be started any time

  • No restriction on operating speed.

  • World’s unique* solar-powered Super Caliper that is eco-friendly with no battery. *According to Mitutoyo investigation in January, 2005

  • The impact resistance of the display unit has been increased for improved usability in workshop conditions.

  • IP67 protection assures waterproof reliability.

  • This Super Caliper uses components that do not contain harmful substances and is compatible with RoHS Directives.

  • Supplied in fitted plastic case.

Part Number Range in/mm LCD Resolution Accuracy SPC Output Remarks: Sale Price

500-786

 0-6"/0-150mm .0005"/0.01mm +/-.001" Yes

$240.00

500-787

 0-8"/0-200mm .0005"/.01mm +/-.001" Yes

$297.00

Digimatic Calipers with Absolute Encoder Series 500 - Coolant Proof  IP67

  • Can be used in workshop conditions exposed to coolant, water, dust or oil.

  • Easy to use - no need to wipe or clean the scale.

  • Advanced design styling.

  • Incorporates absolute measurement system.

  • Automatic power-on/off.

  • Data output function.

  • With thumb roller.

  • Supplied in fitted plastic case.

Part Number
Range in/mm
LCD Resolution
Accuracy
SPC Output
Remarks:
Sale Price

500-752-20
0-6"/0-150mm
.0005"/0.01mm
+/-.001"
No


$172.00

500-762-20
0-6"/0-150mm
.0005"/0.01mm
+/-.001"
Yes


$222.00

500-768-20

 0-6"/0-150mm .0005"/0.01mm +/-.001" No .075" Rod Depth Bar

$172.00

500-769-20

 0-6"/0-150mm .0005"/0.01mm +/-.001" Yes .075" Rod Depth Bar

$222.00

500-731-20

 0-6"/0-150mm .0005"/0.01mm +/-.001" No Carbide Tipped Jaws for ID Measurement

$229.00

500-735-20

 0-6"/0-150mm .0005"/0.01mm +/-.001" Yes Carbide Tipped Jaws for ID Measurement

$286.00

500-733-20

 0-6"/0-150mm .0005"/0.01mm +/-.001" No Carbide Tipped Jaws for OD & ID Measurement

$296.00

500-737-20

 0-6"/0-150mm .0005"/0.01mm +/-.001" Yes Carbide Tipped Jaws for OD & ID Measurement

$443.00

500-753-20
0-8"/0-200mm
.0005"/0.01mm
+/-.001"
No


$230.00

500-763-20
0-8"/0-200mm
.0005"/0.01mm
+/-.001"
Yes


$280.00

500-732-20

 0-8"/0-200mm .0005"/0.01mm +/-.001" No Carbide Tipped Jaws for OD Measurement

$269.00

500-736-20

 0-8"/0-200mm .0005"/0.01mm +/-.001" Yes Carbide Tipped Jaws for ID Measurement

$280.00

500-734-20

 0-8"/0-200mm .0005"/0.01mm +/-.001" No Carbide Tipped Jaws for OD & ID Measurement

$363.00

500-738-20

 0-8"/0-200mm .0005"/0.01mm +/-.001" Yes Carbide Tipped Jaws for OD & ID Measurement

$417.00

500-754-20
0-12"/0-300mm
.0005"/0.01mm
+/-.0015"
No


$399.00

500-764-20
0-12"/0-300mm
.0005"/0.01mm
+/-.0015"
Yes


$482.00

Digimatic Calipers with Absolute Encoders Series 573 - Snap Caliper

  • S pring-loaded mechanism allows quick and efficient GO/NO-GO inspection for mass production parts

  • With SPC data output.

  • Supplied in fitted plastic case



Part Number
Range in/mm
LCD Resolution
Accuracy
SPC Output
Remarks:
Sale Price

573-281-30
0-4"/0-100mm
.0005"/0.01mm
+/-.001"
Yes
Absolute Function Type

$352.00

573-282-30
0-6"/0-150mm
.0005"/0.01mm
+/-.001"
Yes
Absolute Function Type

$396.00

Digimatic Calipers with Absolute Encoders Series 573 - Low Force Caliper

  • I deal for elastic or resilient work pieces such as plastic parts and rubber parts that standard calipers cannot measure.

  • With SPC data output.

  • Supplied in fitted plastic case.

Part Number
Range in/mm
LCD Resolution
Accuracy
SPC Output
Remarks:
Sale Price

573-291-30

 0-7"/0-18-mm .0005"/0.01mm +/-.002" Yes

$736.00

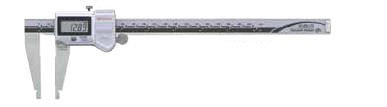

Heavy Duty Digimatic Calipers with Absolute Encoder Series 550 - Nib Style Jaws

  • The rounded faces of the jaws are ideal for accurate ID (inside diameter) measurement.

  • With SPC output.

  • Supplied in fitted plastic case. Except 1000mm / 40” supplied in wooden case.






Part Number
Range in/mm
LCD Resolution
Accuracy
SPC Output
Remarks:
Sale Price

550-311-20
0(.4")-8"/0(10mm)-200mm
.0005"/0.01mm
+/-.001"
Yes
IP67

$472.00

550-341-20
0(.4")-12"/0(10mm)-300mm
.0005"/0.01mm
+/-.0015"
Yes
w/ offset/preset function for easy ID measurement, IP67

$685.00

550-223-10
0(.5")-18"/0(20mm)-450mm
.0005"/0.01mm
+/-.002"
Yes


$859.00

550-225-10
0(.5")-24"/0(20mm)-600mm
.0005"/0.01mm
+/-.002"
Yes


$961.00

550-227-10
0(1")-40"/0(20mm)-1000mm
.0005"/0.01mm
+/-.003"
Yes


$1,717.00


Heavy Duty Digimatic Calipers with Absolute Encoder Series 551 - Nib Style & Standard Jaws

  • The rounded faces of the jaws are ideal for accurate ID (inside diameter) measurement.

  • With SPC output.

  • Supplied in fitted plastic case. 18" / 450mm and larger supplied wooden case.



Part Number
Range in/mm
LCD Resolution
Accuracy
SPC Output
Remarks:
Sale Price

551-311-20
0(.4")-8"/0(10mm)-200mm
.0005"/0.01mm
+/-.001"
Yes
IP67

$519.00

551-341-20
0(.4")-12"/0(10mm)-300mm
.0005"/0.01mm
+/-.0025"
Yes
 w/ offset/preset function for easy ID measurement, IP67

$744.00

551-224-10
0(.5")-18"/0(20mm)-450mm
.0005"/0.01mm
+/-.0025"
Yes


$1,097.00

551-226-10
0(.5")-24"/0(20mm)-600mm
.0005"/0.01mm
+/-.003"
Yes


$1,777.00

551-227-10
0(1")-40"/0(20mm)-1000mm
.0005"/0.01mm
+/-.003"
Yes


$1,862.00

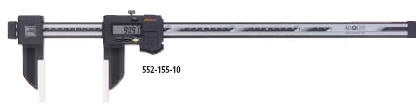

Digimatic Carbon Fiber Calipers with Lightweight Beam Series 552 - w/ Optional Jaw Attachments

  • Lightweight Digimatic Calipers that employ CFRP (Carbon Fiber Reinforced Plastics) in the beam and jaws.

  • Highly durable and easy to handle.

  • The range of applications can be expanded by using the optional attachments.

  • Direct readout of ID measurements from the LCD. (Offset value can be set easily by pressing the Offset key.)

  • Preset function for setting a desired starting point.

  • With SPC data output.

  • Special model available with ceramic jaws which are suitable for measuring abrasive and magnetic products.

  • Optional Attachments: Centerline, Pointed, Clamps

  • Supplied in fitted wooden case.


Part Number
Range in/mm
LCD Resolution
Accuracy
SPC Output
Remarks:
Sale Price

552-312-10
0(.5")-18"/0(20mm)-450mm
.0005"/0.01mm
+/-.002"
Yes

$849.00

552-160-10
0(.5")-18"/0(20mm)-450mm
.0005"/0.01mm
+/-.0025"
Yes
Long Jaw Depth 7.9"

$1,301.00

552-165-10
0(.5")-18"/0(20mm)-450mm
.0005"/0.01mm
+/-.002"
Yes
Ceramic Jaws

$1,275.00

552-313-10
0(.5")-24"/0(20mm)-600mm
.0005"/0.01mm
+/-.002"
Yes

$952.00

552-161-10
0(.5")-24"/0(20mm)-600mm
.0005"/0.01mm
+/-.0025"
Yes
Long Jaw Depth 7.9"

$1,377.00

552-166-10
0(.5")-24"/0(20mm)-600mm
.0005"/0.01mm
+/-.002"
Yes
Ceramic Jaws

$1,369.00

552-314-10
0(1")-40"/0(20mm)-1000mm
.0005"/0.01mm
+/-.002"
Yes

$1,700.00

552-162-10

 0(1")-40"/0(20mm)-1000mm .0005"/0.01mm +/-003 Yes Long Jaw Depth 7.9"

$1,683.00

552-315-10
0(1")-60"/0(20mm)-1500mm
.0005"/0.01mm
+/-.004"
Yes

$2,032.00

552-163-10
0(1")-60"/0(20mm)-1500mm
.0005"/0.01mm
+/-.0045"
Yes
Long Jaw Depth 7.9"

$2,516.00

552-316-10
0(1")-80"/0(20mm)-2000mm
.0005"/0.01mm
+/-.005"
Yes

$3,179.00

552-164-10
0(1")-80"/0(20mm)-2000mm
.0005"/0.01mm
+/-.0055"
Yes
Long Jaw Depth 7.9"

$3,400.00

Digimatic Carbon Fiber Calipers with Lightweight Beam Series 552 - w/ Interchangeable Jaws

  • The range of applications can be expanded by using the interchangeable jaws (optional)

  • Quick and easy exchanging of jaws due to the unique clamping mechanism ( A pair of clamping wheels are standard accessories)

  • Provided with preset function for setting a desired starting point, which allows direct readout of offset measurements

  • With SPC Output

Part Number
Range in/mm
LCD Resolution
Accuracy
SPC Output
Remarks:
Sale Price

552-191-10

 0-18"/0-450mm .0005"/0.01mm +/-.002" Yes Coolant Proof - IP66 - Interchangeable Jaws

$816.00

552-192-10

 0-24"/0-600mm .0005"/0.01mm +/-.002" Yes Coolant Proof - IP66 - Interchangeable Jaws

$843.00

552-193-10

 0-40"/0-1000mm .0005"/0.01mm +/-.002" Yes Coolant Proof - IP66 - Interchangeable Jaws

$1,360.00

552-194-10

 0-60"/0-1500mm .0005"/0.01mm +/-.004" Yes Coolant Proof - IP66 - Interchangeable Jaws

$2,193.00

552-195-10

 0-80"/0-2000mm .0005"/0.01mm +/-.005" Yes Coolant Proof - IP66 - Interchangeable Jaws

$3,077.00


Digimatic Calipers with Absolute Encoder Series 573 - Blade Type

  • The thin blade type jaws fit into very small grooves and making previously difficult outside measurements far easier to obtain.

  • The OD measuring faces are carbide-tipped

  • With depth bar.

  • With SPC data output.

  • Supplied in fitted plastic case.

Part Number
Range in/mm
LCD Resolution
Accuracy
SPC Output
Remarks:
Sale Price

573-734-20
0-6"/0-150mm
.0005"/0.01mm
+/-.001"
Yes
Blade Type & OD Carbide Jaw, IP67

$516.00

Digimatic Calipers with Absolute Encoder Series 573 - Neck Caliper

  • Point jaw type can measure wall thickness inside bores and recesses.

  • Flat jaw type can measure grooves and recesses.

  • With SPC data output.

  • Supplied in fitted plastic case.

Part Number
Range in/mm
LCD Resolution
Accuracy
SPC Output
Remarks:
Sale Price

573-751-20
0-6"/0-150mm
.0005"/0.01mm
+/-.0015"
Yes
Neck Type, w/o Depth Bar, IP67

$598.00

573-752-20
0-6"/0-150mm
.0005"/0.01mm
+/-.0015"
Yes
Outside Point Type, w/o Depth Bar. IP67

$720.00

Digimatic Calipers with Absolute Encoder Series 573 - Tube Caliper

  • The main scale jaw is a round bar that facilitates measurements of tube wall thickness.

  • With SPC data output.

  • Supplied in fitted plastic case.

Part Number
Range in/mm
LCD Resolution
Accuracy
SPC Output
Remarks:
Sale Price

573-761-20
0-8"/0-200mm
.0005"/0.01mm
+/-.002"
Yes
Tube Thickness Type, w/o Depth Bar, IP67

$579.00

Digimatic Calipers with Absolute Encoder Series 573 - Knife Edge/Inside Groove/Point Jaw Type

  • Specially designed for inside measurements in hard-to-reach places.

  • With SPC data output.

  • Supplied in fitted plastic case. 450mm and 600mm supplied in wooden case.



Part Number
Range in/mm
LCD Resolution
Accuracy
SPC Output
Remarks:
Sale Price

573-742-20
.4-8"/10-200mm
.0005"/0.01mm
+/-.002"
Yes
Knife-Edge Type, w/o Depth Bar, IP67

$816.00

573-745-20
.4-6"/10-150mm
.0005"/0.01mm
+/-.002"
Yes
Inside Groove Type, w/o Depth Bar, IP67

$653.00

573-746-20
.8-6"/20-150mm
.0005"/0.01mm
+/-.0015"
Yes
Pointed Jaw Type, w/o Depth Bar, IP67

$792.00

Digimatic Calipers with Absolute Encoder Series 573 - Point Caliper

  • Narrow tip jaws fit into very small grooves and tracks, making many previously difficult outside measurements far easier to obtain.

  • With depth bar.

  • With SPC data output.

  • Supplied in fitted plastic case.



Part Number
Range in/mm
LCD Resolution
Accuracy
SPC Output
Remarks:
Sale Price

573-721-20
0-6"/0-150mm
.0005"/0.01mm
+/-.001"
Yes
0.3mm Pointed Jaw,  IP67

$365.00

573-725-20
0-6"/0-150mm
.0005"/0.01mm
+/-.001"
Yes
2mm Nib Style Pointed Jaw,  IP67

$453.00

Digimatic Calipers with Absolute Encoder Series 573 - Scribing caliper

  • The carbide-tipped jaws facilitate fine scribing on workpiece.

  • With depth bar.

  • With SPC data output.

  • Supplied in fitted plastic case.

Part Number
Range mm
LCD Resolution
Accuracy
SPC Output
Remarks:
Sale Price

573-676-20
0-150mm
0.01mm
+/-.02mm
Yes
  Metric unit only, IP67

$298.00

573-677-20
0-200mm
0.01mm
+/-.02mm
Yes
  Metric unit only, IP67

$393.00

573-679-20
0-300mm
0.01mm
+/-.03mm
Yes
  Metric unit only, IP67

$819.00

Digimatic Calipers with Absolute Encoder Series 573 - Offset Caliper

  • Main scale jaw can slide up and down to facilitate measurement of stepped sections.

  • Hard-to-get-at dimensions such as A, B, C can be accurately measured.

  •   With depth bar.

  • With SPC data output.

  • Supplied in fitted plastic case.



Part Number
Range in/mm
LCD Resolution
Accuracy
SPC Output
Remarks:
Sale Price

573-701-20

 0-6"/0-150mm .0005"/0.01mm +/-.001" Yes IP67

$417.00

573-702-20

 0-8"/0-200mm .0005"/0.01mm +/-.001" Yes IP67

$478.00

573-704

 0-12"/0-300mm .0005"/0.01mm +/-.0015" Yes IP67

$640.00

Digimatic Calipers with Absolute Encoder Series 573 - Offset Centerline Caliper

  • Specially designed for center to center distance measurements on the same and offset planes.

  • Can also measure from edge to center.

  • Hole diameter should be in the range of 1.5mm-10mm (.06"-.4").

  • With SPC data output.

  • Supplied in fitted plastic case.

Part Number
Range in/mm
LCD Resolution
Accuracy
SPC Output
Remarks:
Sale Price

573-705-20

 0.4-6"/10-150mm .0005"/0.01mm +/-.0015" Yes IP67

$523.00

573-706-20

 0.4-8"/10-200mm .0005"/0.01mm +/-.0015" Yes IP67

$581.00

573-708-20

 0.4-12"/10-300mm .0005"/0.01mm +/-.0015" Yes IP67

$578.00

Digimatic Calipers with Absolute Encoder Series 573 - Back-Jaw Centerline Caliper



  • Specially designed to measure the distance from an edge to center.

  • Provided with jaws on the back of the slider, measurements can be read easily by looking down.

  • Direct reading of pitch measurements is available due to the offset value setting function

  • With SPC data output.

  • Supplied fitted in wooden case.

Part Number
Range mm
LCD Resolution
Accuracy
SPC Output
Remarks:
Sale Price

573-718-20

 10-200mm 0.01mm +/-0.10mm Yes Edge-to-center distance Type, Metric only,

$1,029.00

573-719-20

 10-300mm 0.01mm +/-0.15mm Yes Edge-to-center distance Type, Metric only

$1,071.00

All Other Mitutoyo Calipers


For Vernier, Dial, and All Other Calipers Please Call


We will quote upon request other Mitutoyo Calipers - Including:

Metric Only Models
Dial Calipers - Series 505
Heavy Duty Dial Calipers – Series 504
Offset Calipers _ Series 573, 536
Offset Centerline Calipers – Series 573, 536
Digimatic Point Calipers w/ ABS Encoder – Series 573
Low Pressure Calipers – Series 573, 536
Precision Vernier Calipers – Series 530, 531, 532
Diamond Vernier Calipers – Series 522
Vernier Calipers – Series 160, 534
Tire/Wheel Brake Calipers - Series 573

 ***Caliper Accessories***

 Center Line Gage
Calipers Depth Base Attachment

 ***Replacement Parts & Outdated Items***

 SR-44 Battery
Parts List available upon request

 If you are looking for a replacement product, please provide us the “Code” on your part.

We will search for the current “Code” number, price and availability.

To research, view specifications, go to Mitutoyo online catalog…
 http://www.mitutoyo.com/template1.aspx?id=170
